line-source

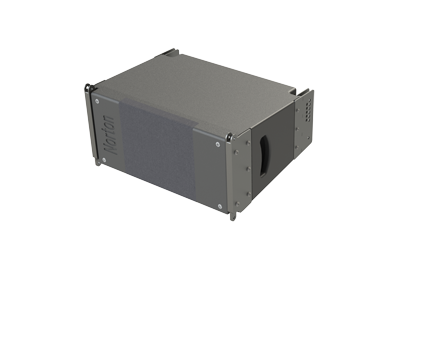

The LS2 element is a very compact and extremely powerful high output speaker that exceeds all the expectations about what a Line-Source should sound.

It is an active 2-way system with a operating frequency bandwidth from 85Hz to 20Khz. This response is lowered down to 28Hz with the addition of the SB118 or SB221 Subwoofers.

LS2 features Two 8” drivers in a bass-reflex tuned enclosure and a 1.5” compression driver coupled to our patented (Elliptic Plane Progression isophasic Coupler) (Eppic®) waveguide for HF reproduction.

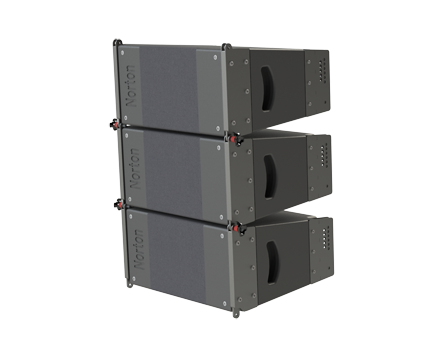

The coplanar transducer configuration generates a symmetrical horizontal coverage of 100º without secondary lobes over the entire frequency range. The 4-point rigging system is fully integrated into the LS2 cabinet allowing up to 24 elements to be flown in accordance with manufacture's recommendations.

The LS2 comes pre-wired, complete with rigging hardware, power and control electronics and delivered in road cases.

Related products
CF10
SB118

Technical Info

Usable Bandwidth: 85 Hz – 20 KHz
Nominal Directivity: 100° Horizontal - Symmetric
Maximum Continuous SPL: 128 dB
Power Handling: 650 W

Components

LF: : 2 x 8’’ weather-resistant 2 x 16 ohm
HF: 1 x 1,5’’ HF compression driver 16 ohm

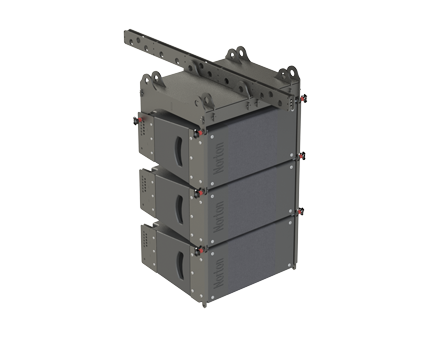

Rigging

Angles from 0° to 10° in linear step increment

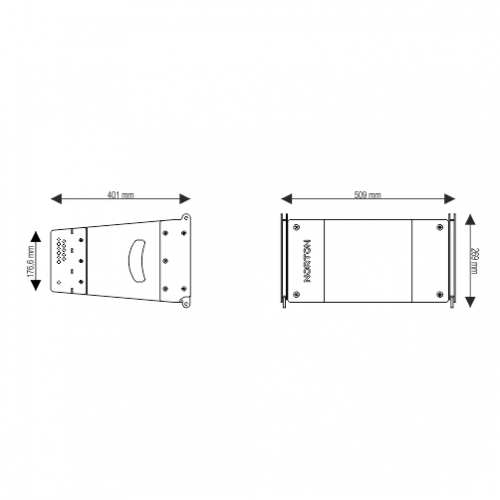

Physical Data

Width: 509 mm

Height: 269 mm

Depth: 401 mm

Weight: 25 Kg

Material: Baltic Birch Plywood

Connections: 2 x 4 Pin Speakon
