line-source

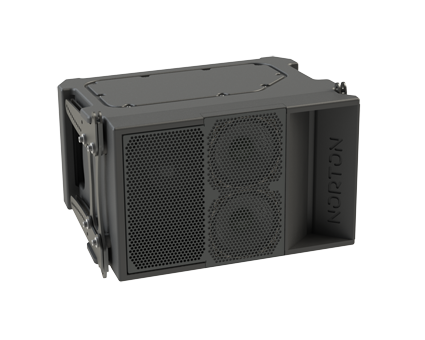

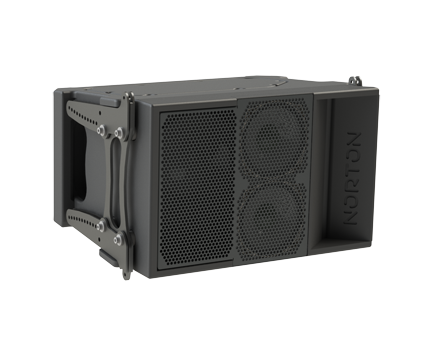

The ALS1 is at the peak of the practical limits of a modern state of the art loud speaker.

By simply avoiding any mid-frequency horns, the ALS1 is just the most compact line source element presently available in its category.

The ALS1 ultra-efficient mid frequency drivers, do not have any back or front chamber volumetric frames. They directly profile the bass loudspeaker front band-pass cavity, allowing competent thermal freshening for themselves and an overall ultra-compact and extremely powerful packing that fills all the expectations about how a Line-Source should sound.

ALS1 is an active 3 way system with an operating frequency bandwidth from 60 Hz to 20 KHz. This response is lowered down to 28Hz with the addition of the SB118 or SB221 Subwoofers.

ALS-1 features one 12” driver in a band-pass tuned enclosure, two 6.5'' back-sealed standalone medium drivers and two 1” ring-compression drivers coupled to our patented (Elliptic Plane Progression isophasic Coupler) (Eppic®) waveguide for HF reproduction.

The ALS1 comes complete with transport racks, rigging hardware, power and control electronics.

Related products
CF10
SB118
SB221

Technical Info

Usable Bandwidth: 60 Hz - 20 kHz
Nominal Directivity: 100° Horizontal - Symmetric
Maximum Continuous SPL: 130 dB
Power Handling: 1200 W

Components

LF: 1 x 12
MF: 2 x 6,5
HF: 2 x 1

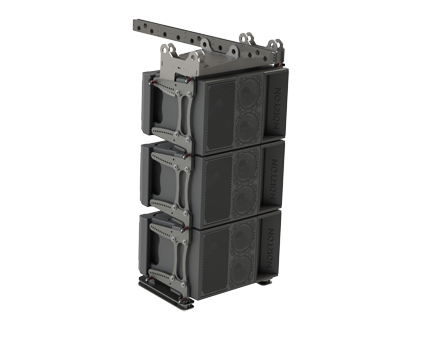

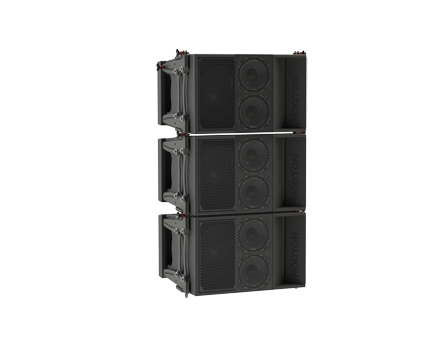

Rigging

Angles from 0° to 10° in 1° linear step increment

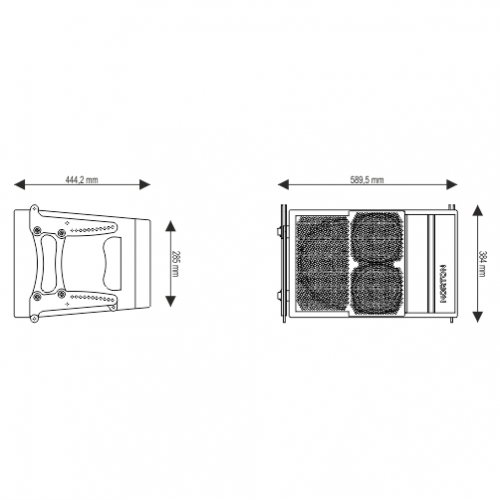

Physical Data

Width: 589,5 mm

Height: 384 mm

Depth: 444,2 mm

Weight: 31 Kg

Material: Baltic Birch Plywood

Connections: 2 x 8 Pin Speakon
